HP-High Power Battery +BMS

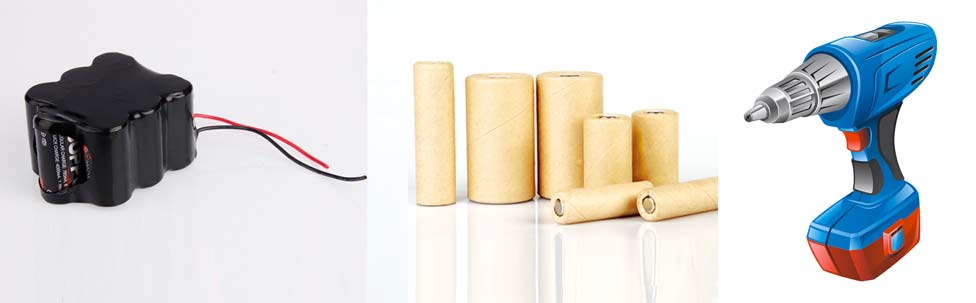

Suitable for power tool, vacuum cleaner,electric vehicle, robots and R/C toy







Product Overview

With continuous technology improvement, NiMH battery presents obvious advantages in various aspects, such as high rate discharge, cycle life, charge retention,safety and high-low temperature performance. Since January 1st, 2016, Nicd batteries are banned in EU, NiMH batteries are the ideal substitute, no charging or structure design need to be modified, just higher capacity can be available, 100% environment friendly.


HP/HPY-High Power Series

Size Model

Typical Capacity(mAh)

Min.Capacity(mAh)

Size(mm)

Weight(g)

Typical Impedance

(mΩ)

OD

Height

AA HP-AA1.1 1100 1000 14.5 49.0 25.0 15
AA HP-AA1.2 1200 1100 14.5 49 25 15
AA HP-AA1.3 1300 1200 14.5 49.0 26.0 15
AA HP-AA1.4 1400 1300 14.5 49.0 27.0 15
AA HP-AA1.5 1500 1400 14.5 49.0 28.0 15
AA HP-AA1.6 1600 1500 14.5 49 30 12
AA HP-AA1.8 1800 1700 14.5 49.0 32.0 12
4/5SC HP-4/5SC1.6 1600 1500 23.0 34.0 41.0 5
4/5SC HP-4/5SC2.0 2000 1900 23.0 34.0 44.0 5
SC HP-SC1.3 1300 1200 23.0 43.0 38.0 5
SC HP-SC1.5 1500 1400 23.0 43.0 40.0 5
SC HP-SC1.6 1600 1500 23.0 43.0 41.0 5
SC HP-SC1.8 1800 1700 23.0 43.0 43.0 5
SC HP-SC2.0 2000 1900 23.0 43.0 45.0 5
SC HP-SC2.5 2500 2350 23.0 43.0 50 4
SC HP-SC2.8 2800 2650 23.0 43.0 55 4
SC HP-SC3.0 3000 2850 23.0 43.0 58 4
SC HP-SC3.3 3300 3100 23.0 43.0 63 4
SC HP-SC3.6 3600 3400 23.0 43.0 70 4
C HP-C4.0 4000 3700 25.8 50.0 82 3.5
C HP-C4.2 4200 3950 25.8 50.0 84 3.5
C HP-C4.3 4300 4050 25.8 50.0 85 3.5
C HP-C4.5 4500 4200 25.8 50.0 87 3.5
D HP-DW5.0 5000 4650 33.0 58.0 108 4.5
D HP-D7.0 7000 6500 33.0 61.0 135 3.5
D HP-D8.0 8000 7400 33.0 61.0 142 3.5
D HPY-D8.0 8000 7400 33.0 61.0 145 3.5
D HP-DW8.0 8000 7400 33.0 58.0 145 3.5
D HP-DW8.5 8500 7800 33.0 58.0 148 3.5
D HP-D8.5 8500 7800 33.0 61.0 148 3.5
D HP-D9.0 9000 8300 33.0 61.0 152 3.5
D HPY-D9.0 9000 8300 33.0 61.0 160 3.5
F HP-F12 12000 11000 33.0 91.3 235 3.5
F HP-F13 13000 12000 33.0 91.3 250 3.5
M HP-M18 18000 17000 41.6 91.3 350 3
M HP-M20 20000 18500 41.6 91.3 380 3
M HP-M22 22000 20500 41.6 91.3 420 3
M HP-M26 26000 24500 41.6 91.3 450 3
*All models are available with HPY series to provide extended cycle life and higher power output

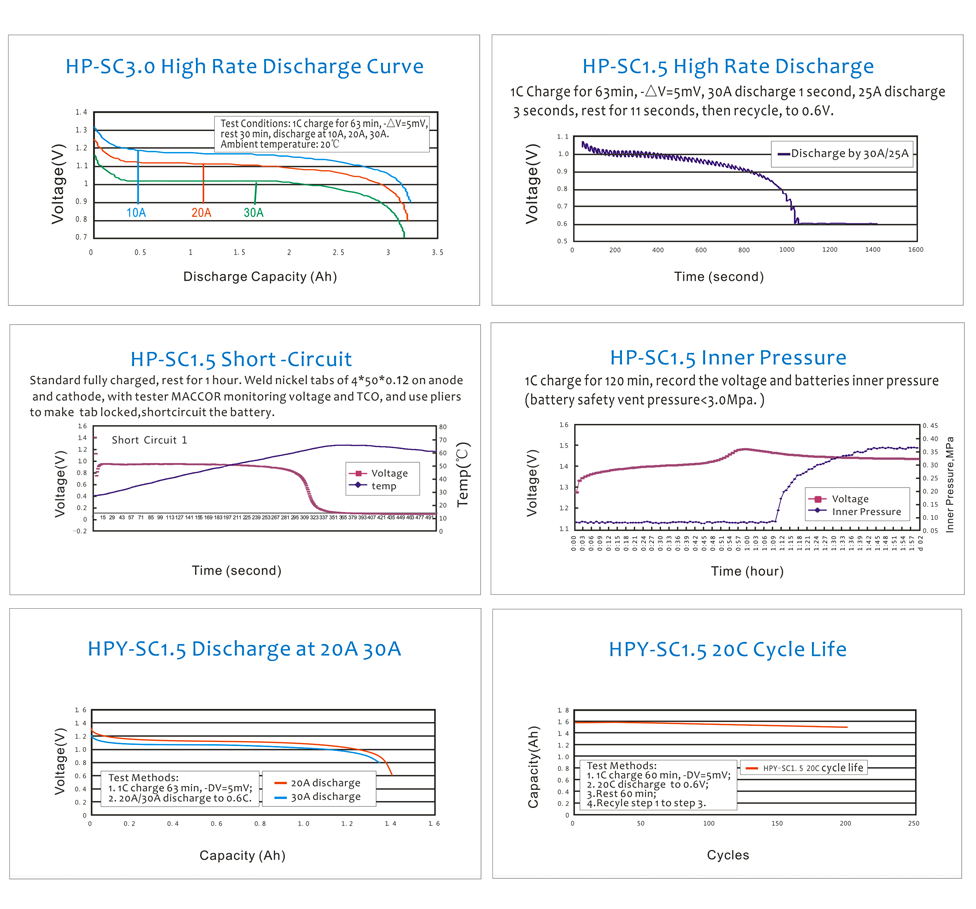

HP-High Power Series Battery Typical Curves
