HT/HTO-High Temperature Series

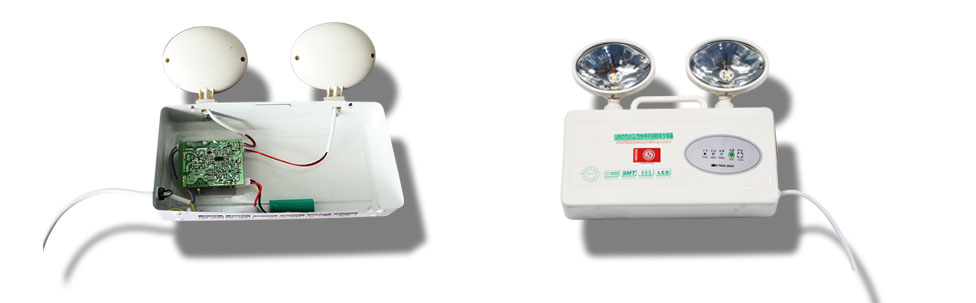

Suitable for Emergency lighting etc, which need trickle charge at over 40℃




Product Overview

Meet IEC61951.2-2011 and ICEL1010 standard, design to handle continuous overcharge at high temperature, minimum 3 years service life guaranteed, top tier in the world!





HT/HTO High Temperature Series

Size Model

Typical Capacity(mAh)

Min.Capacity(mAh)

Size(mm)

Weight(g)

Typical Impedance

(mΩ)

OD

Height

AA HT-AA1.2 1200     1100 14.5 49.0 25.0 25
SC HT-SC2.2 2200 2000 23.0 43.0 51.0 6
C     HT-C4.0 4000 3500 28.5 50.0 77.0 6
D     HT-D7.0 7000 6000 33.0 61.0 135.0 3.5
F HT-F12 12000 10000 33.0 91.3 235.0 3.5
M HT-M20 20000 18000 41.6 91.3 450.0 3
HTO: suitable for trickle over charge , other models also available upon request

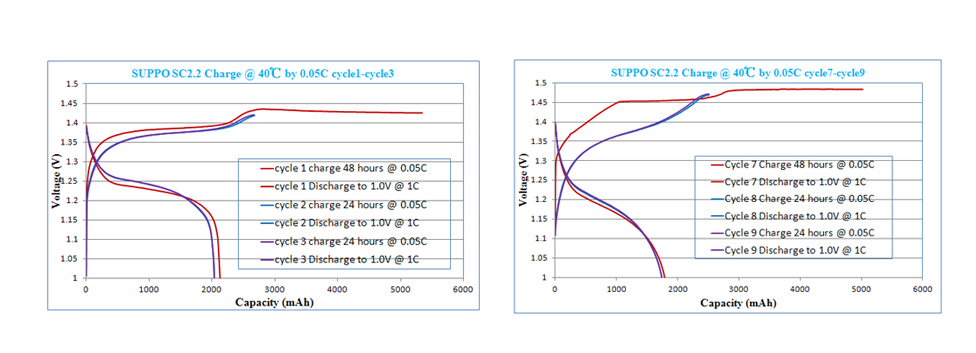

HT/HTO-High Temperature Series Battery Typical Curves
